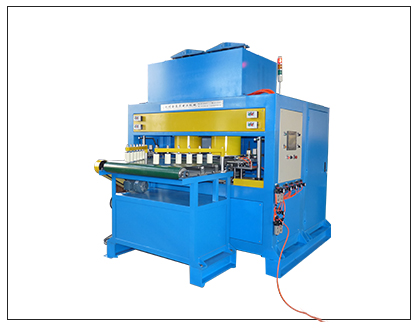

YPS200-YPS500 double head automatic looping machine

Product Details

Automatic wire looper technical parameters

< p=""> This series of wire looping machine is suitable for: 0.5-6 square single wire and wire loop and wire diameter less than 14MM round sheath wire.

Technical parameters:

1, take-off frame form: end shaft Electric lift type

2, lift motor: reducer motor 2HP (1.5kw)

< p=""> 3, high-precision meter: accuracy is 0.1% (one thousandth)

4, high speed of the circled host :500 rpm

5, motor power: 5HP (2.2kw)

6, control system: frequency conversion + single chip integrated system

7, the size of the coil plate: ∮130mm-∮250mm (can be used Optional)

8, Disk reel specification: ∮1000mm-∮1250mm (optional)

9, Brake System: Pneumatic Brake Control

10, Scope: 0.5-6 square meters A single wire and a wire diameter less than 14MM round sheath wire looping and tying.

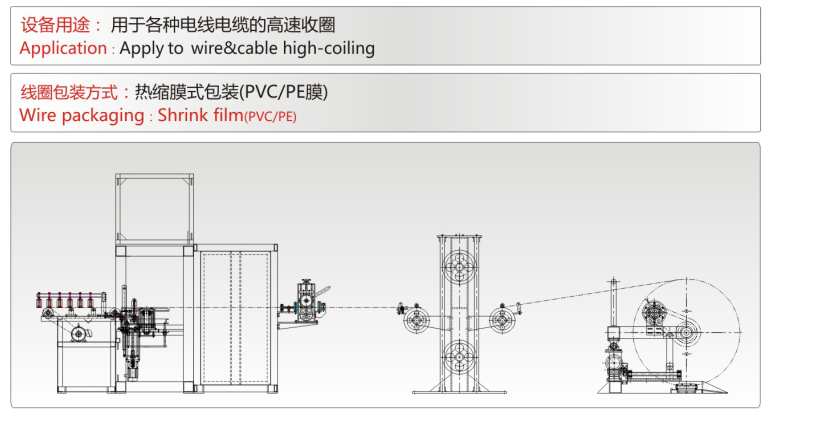

Equipment: Medium-section automatic line-forming looping machine consists of end-shaft pay-off frame, metering device, fast looping device Part of the composition.

1, 630mm pneumatic shaftless double top arm type pay-off frame (optional)

Applicable spool: ∮630MM-∮800MM

Applicable cable: 0.5 square-6 square (hard structure) ), 0.5 square -6 square (soft structure)

release speed: 0-500m/min Large load capacity: 3 tons

< p="">

Opening and closing mode: electric lifting, double top arm upper and lower discs

Brake method: cylinder system Dynamic control brake

2. Two-way one-way mode of high-precision metering device

Big line speed: 500m/min (m/min)

Test cable range: 2-14mm

Measuring Accuracy: 0.1%

Elasticity: Double-cylinder one-button elastic
