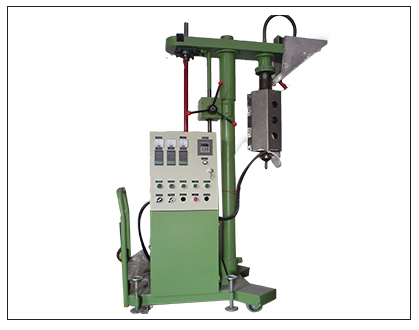

Vertical Note Machine

The equipment is suitable for high-speed extrusion of PVC, PP, PE, SR-PVC and other plastics, and is connected with the host to achieve co-extrusion, monochrome, two-color wire production.

Cables assisted with major specifications

      screw parameters:

Diameter: Ф50mm extrusion machine PVC special screw 壹.

Material: 38CrMoAIA alloy steel, B/M type, full tooth nitriding treatment, surface hardness HV950 or more, its characteristics have a large amount of extrusion, plasticization degree of 100%.

Length to diameter ratio: 25:1.

Speed range: 0 to 90 rpm.

The amount of extrusion: 0 ~ 60KG / H. (open head, soft PVC)

Screw cylinder parameters:

Material: SACM aluminum-chromium-manganese alloy steel, nitriding treatment, precision grinding in the cylinder, the hardness of the inner surface of the screw cylinder is higher than the hardness of the thread surface of the screw R2-R3.

Equipped with 15HP Germany SIEMENS motor.

The center height of the unit is 1000mm.

Gearbox:

Imitation Italian reduction gear box, precision grinding, mandatory oil lubrication and cooling, with anti-wear, low noise characteristics, dedicated to 50 machines.

Tr

Dryer, suction machine: (Taiwan Uniform)

a. 25KG type separation type automatic suction machine, the suction amount is 450kg/hr. b. The straight knot hopper is dry, the drying temperature efficiency is 100% c. The temperature is automatically controlled and the temperature can be set arbitrarily.
