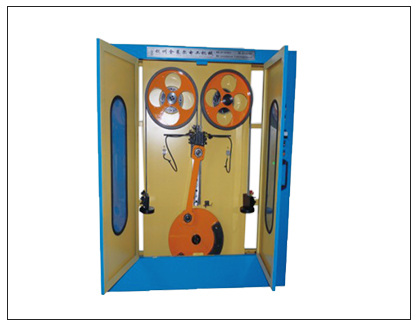

Cable winding test machine

It is suitable for testing the soft cable of rubber and plastic insulation and sheath under the dynamic bending test of the load and detecting the following wire and cable failure and stopping in the test.

Product specifications

1) Flexural length: 200-1500 (mm)

2) Motor power: 370W

3) Sample outer diameter: φ6-32 (mm)

4) Sample length: 3000 ± 5% (mm)

5) Height from ground: 1500mm [1]

Tr

Technical indicators:

Meet the test requirements for the winding of circular elevator cables in GB/T5O23.6-2006 "PVC insulated cables with rated voltages of 450/750 and below - Part 6: Cable cables for elevator cables and flexible cables". It meets the requirements of the elevator cable winding test in IEC60227.6-2001.

1. Maximum outer diameter of the sample: 40mm (no limit on the core)

2. The number of trial cycles: 3 million times (can be set)

3. Test reciprocating frequency: 1500±10 times/hour (can be adjusted)

4. Apply DC voltage to the sample: 12V, and have a wire break alarm device

5, power and power: 380V/1.5KW
