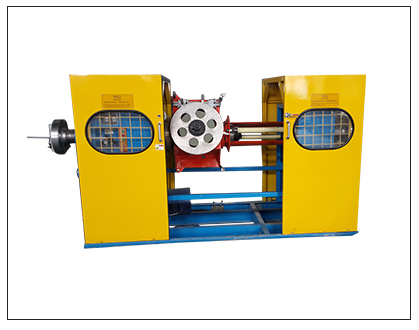

Half-cut multi-layer wrapping machine

The semi-cut multi-layer wrapping machine is mainly used for wrapping various non-metallic materials. The electronic gearbox with electromechanical control replaces the traditional gearbox. The utility model has the advantages of high speed, high production efficiency, stable winding pitch, convenient adjustment of the angle of the belt.

Tr

1. The wrapping device is of ordinary structure, and the angle of the tape is adjusted by the guide roller. Each reel can be separately adjusted, and the tension of the tape is controlled by mechanical friction and manually adjustable.

2, electrical control system: the use of human-machine interface touch screen control, through the production process parameters digital settings, to achieve cable fixed length self-stop, pitch direct input, motor controller fault alarm and other functions.

3, the traditional shaft drive cable machine, cage winch due to the low wrapping speed, the production capacity is difficult to upgrade, the sub-power ordinary winding can be upgraded through the upgrade, using the encoder to track the production line axis speed, to achieve the synchronization of the package and the host, not only Ensure product quality and increase production efficiency.

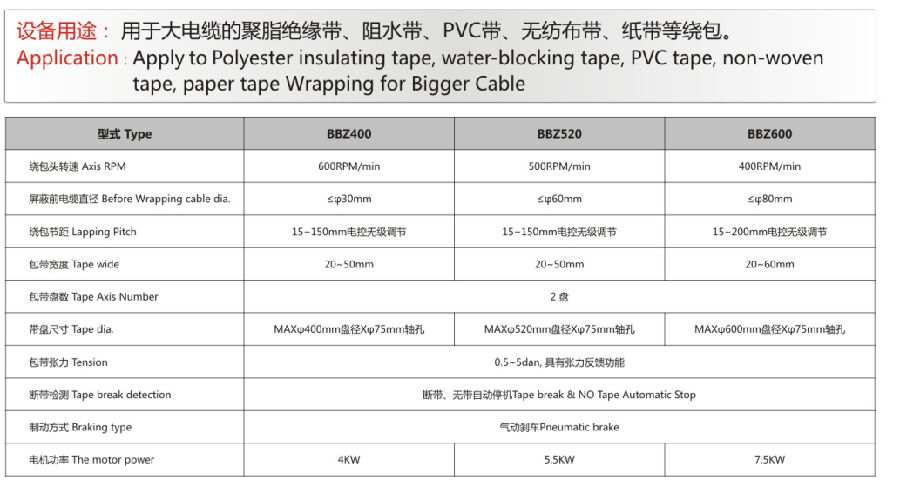

Equipment use: polyester insulation tape, water blocking tape, PVC tape, non-woven tape, paper tape, etc. for large cables.
