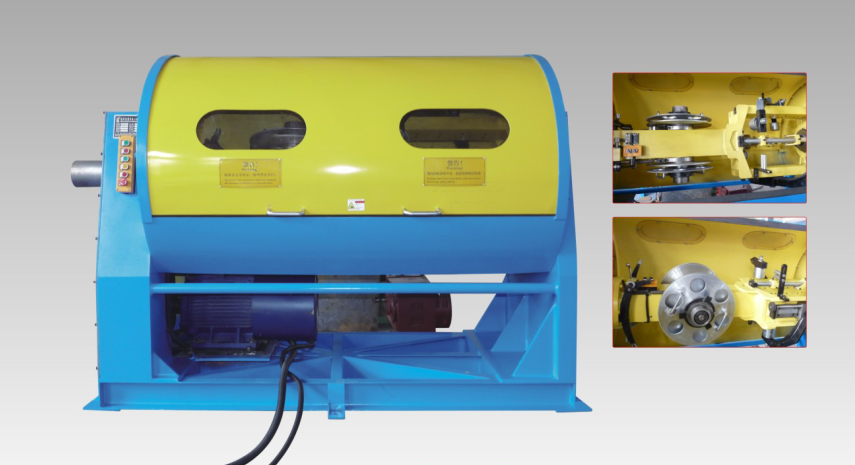

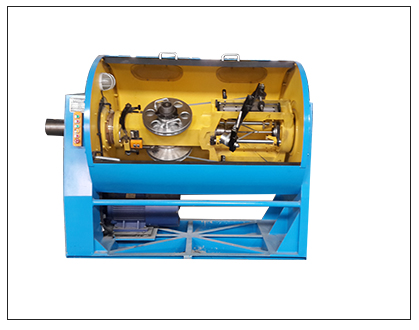

All-electrically controlled steel belt armoring machine

Fully electronically controlled steel strip Loading machine is mainly used for steel tape armoring of large cables.

Take-up rack-wire device-meter meter-main motor drive-winding device-ladle device-crawler device-retracting cable rack-electric control and safety protection.

1. The steel belt device adopts double front and rear support, rolling steel belt armored structure, thick-walled seamless steel pipe for armored rotating body, and fast screw rod locking device for steel belt outlet, which is easy to operate and safe.

2. The steel head adopts frequency conversion motor and stepless speed change, which can realize the function of forward and reverse rotation. The whole machine has no ground shaft, high speed, low noise and high productivity.

3. The braking mode is pneumatic brake, the braking effect is good, and the braking is stable.

4, the electrical control system, using the human-machine interface touch screen control, through the production process parameters digital settings, to achieve cable fixed length self-stop, pitch direct input, motor controller fault alarm and other functions.

5. The steel head is equipped with a high-strength integral base plate to ensure installation, convenient commissioning and safe and reliable operation.

Jinlaier Electromechanical Equipment Co., Ltd. has developed and improved high-tech raw lines focusing on fluoroplastic wire, low-smoke halogen-free, PE foaming, high-density foaming, special PU wire and 5E cable, and Category 6 cable. We create a brilliant enterprise with our customers with "quality products, preferential prices, and honest service".
