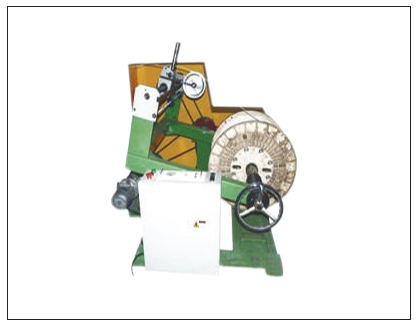

Swing arm type single-axis wire take-up machine

Swing arm wire take-up machine: 1, there is electric lift, manual lift 2, with cylinder clamping reel, Manual clamping of the performance parameters of the reel 1. Can be placed 800 wire reel, 630 wire reel can be placed 500 wire reel 2. Use torque motor to retract

Product Attributes

1 The wire machine should be fixed on the ground with expansion screws. 2. Roll the wire plate onto the top of the slide plate. 3. Adjust the angle of the swing arm. Firstly, the end of the wire plate is matched with the end of the fixed top cone through the slide plate. 4. Adjust the top end cone of the movable end to make the line The disc is fixed by the top cones at both ends. 5. Adjust the angle of the swing arm to make the reel out of the skateboard.

Other instructions

1 The main color of this product is green. If you need to change the color, you can By mailing the swatches to the factory, we can adjust the color according to the customer's swatch. 2 We can also According to the needs of customers to customize some of the performance of the product

Ginlay continues to absorb advanced technology from Europe, America, and Japan, and the main components used in the machine are transcripts. Taiwan, the United States original products, can better produce the current advanced level of high-speed extruder and high-speed silicone extrusion production line, high-speed electric control cutting machine, high-speed stranding machine and high-speed electronic control stranding machine, cable machine.
