SX side-by-side twin-axis take-up machine

Product introduction a. Two-stage take-up spool take-up line, can be equipped with different take-up devices as needed.

b. Use φ30 polished rod cable arranging cable, the speed and width of the cable can be adjusted.

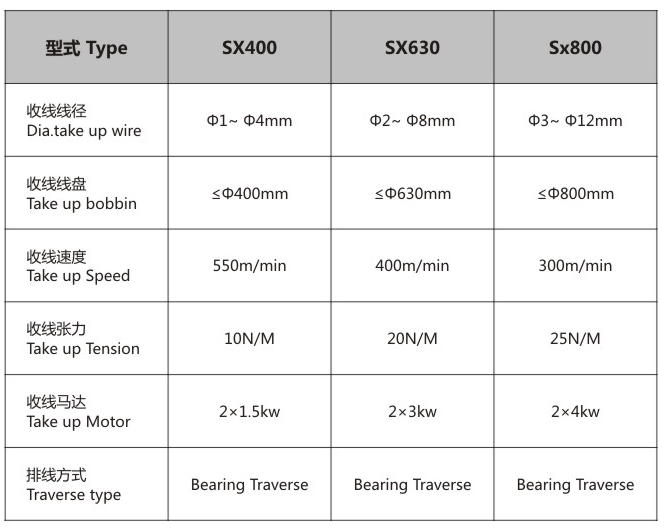

Product attributes can be placed in 400 disks, 500 disks, 630 disks, 800 disks

According to customer needs, first use the "power switch" to turn the wire around the wire spool" The number of meters is zero. According to the production needs, set the “meter meter” to automatically stop the meter. (If you don’t need it, set the meter value to be large.) Press the “Left Start” or “Right Start” button (according to the reel) Fixed), turn the "left speed" or "right speed" knob clockwise to adjust the take-up speed. As the take-up speed increases, the voltage of the "voltmeter" of the shaft also increases. Once adjusted to the desired speed, the device is automatically produced. If the automatic shutdown meter is set, the device will automatically stop when it reaches the meter. If it is not set, the operator will first turn the “left speed” or “right speed” counterclockwise and then press “ The device stops working when left stop or right stop. Main features a.This equipment should be installed in a sturdy and flat place, with the rubber pad under the base and fastened with expansion screws. Installation

b. When wiring the device, look at the bobbin steering. The unit is: facing For the take-up machine, the take-up reel should rotate clockwise.

c.Connect the meter to the meter and connect it to the meter. The problem can be used for normal production

The main purpose is Siemens brand 4KW three-phase asynchronous variable frequency motor drive; equipped with Japanese three-inch inverter, and linked with the inspection of the storage rack, automatically adjust the take-up speed, take-up meter The number is set by itself, and when the number of meters is automatically stopped after it is in place, it can be switched to another take-up spool to automatically take off the line. Precautions   This equipment should be regularly maintained as follows

a, The drive belt should be checked for tightness regularly, such as too loose to loosen the motor tightening screw for adjustment.

b,The bearings at both ends of the take-up reel and the lead screw should be lubricated with grease regularly.

c, Motor maintenance see instructions.

Other Description 1   The main color of this product is sky blue (customers can change the color, you can mail the swatch to the factory, we can adjust the color according to the customer's swatch)

Ginlay continues to absorb advanced technology from Europe, America and Japan, and the main components used in the machine are original products from Sakamoto, Taiwan and the United States. Horizontal high-speed extruder and high-speed silicone extrusion production line, high-speed electric control cutting machine, high-speed stranding machine and high-speed electric control stranding machine, cable-forming machine.
