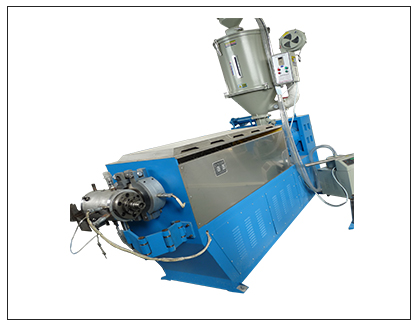

XJYC50-XJYC100 Irradiation Crosslinked Rubber Extruder

Adapted to the production of rubber wire and cable, which can be used to complete single-layer insulated cables and double-layer co-extruded cables. Extrusion and continuous vulcanization of colored strip cables and double parallel cable insulation and sheath layers.

[Structure of Equipment]:

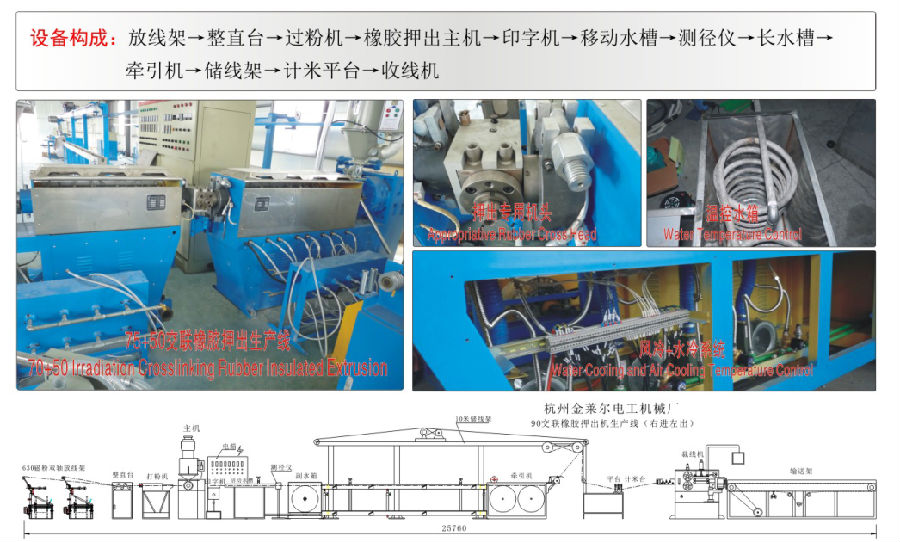

Attachment and traction , tension frame, main machine, machine head, upper seal, vulcanized pipe, lower seal, revolving rear wheel set, lower traction, vertical storage line, wire take-up device, strong >Thread cutting machine, water and gas balance device and electrical control.

[Technical Features]:

1. Host feeding mode Roller type or eccentric structure, the screw is double screw type, and the barrel adopts a circulating sleeve structure.

2. Water or oil temperature control device with precise temperature control.

3. The upper and lower seals are hydraulic or pneumatically driven.

4. The vulcanization pipe is inclined.

5. The machine head is a special circulation structure for rubber, alloy steel.

6. Electrical control, using PLC+ human-machine interface control or traditional option.

Hangzhou Jinlaier Machinery Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing, improvement and innovation of cable equipment. It is located in the beautiful and magical West. Lakeside. With the help of time, location and people, our company is growing in the love of our customers. At present, the company's main customers are from Central Europe, South America and South Africa. Our company constantly draws on advanced technology from Europe, America and Japan, and the main parts used in the machine are original products from Sakamoto, Taiwan and the United States. It can better produce high-speed extruders and high-speed silicone extrusion lines with advanced levels. Control cutting machine, high speed stranding machine and high speed electric control stranding machine, cable forming machine.
